DJeXeL Posted February 10, 2014 Share Posted February 10, 2014 ^I've seen these already but thank you. Link to comment Share on other sites More sharing options...
Mrlittle Posted February 10, 2014 Share Posted February 10, 2014 So I always skipped over this thread because I didn't think photos of control panels would interest me. I was wrong, it's pretty cool stuff. Link to comment Share on other sites More sharing options...
arby Posted February 11, 2014 Share Posted February 11, 2014 ^yeah, I never gave the control panels a second thought until this thread. Now I'm paying closer attention to them. Link to comment Share on other sites More sharing options...

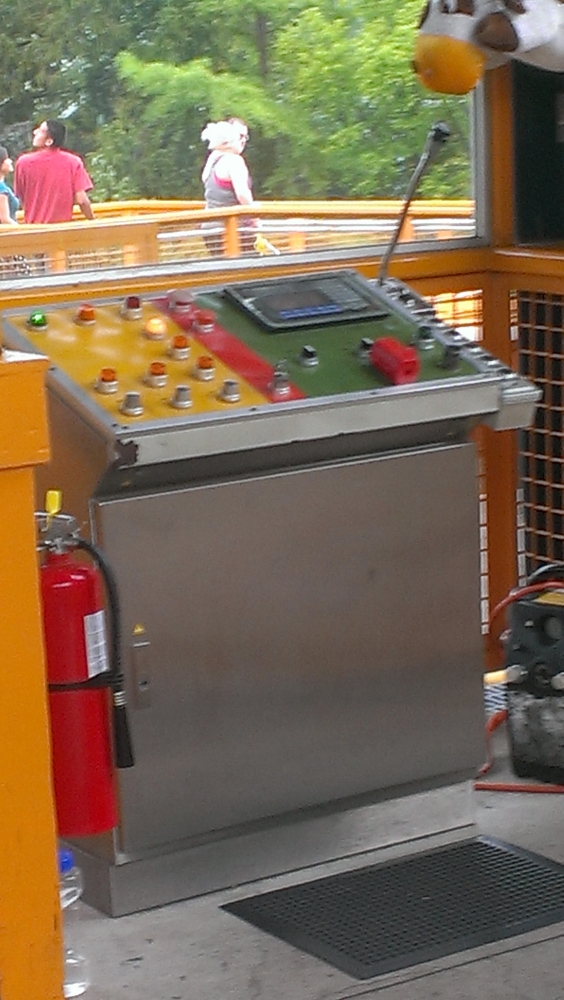

BisonRugbyGuy Posted February 19, 2014 Share Posted February 19, 2014 Here are a couple that I have. Sorry for the cell phone quality, I'll try to snap some more the next time I'm at work. I think it's interesting how similar rides can have such different looking control panels; If I remember correctly, Steel Venom's looks more like Avatar's than it does Vertical Velocity's. Nickelodeon Universe's Avatar Airbender SFGAm's Giant Drop SFGAm's Vertical Velocity Link to comment Share on other sites More sharing options...
Hilltopper39 Posted February 20, 2014 Share Posted February 20, 2014 Brian -- feel free to post as many as you can! I love checking these out. When you worked at Consign, did another company fabricate your panels for you, or were those done in house? How about now at IOE? -=CoasterBP Yes we had a panel shop when I worked at Consign. I am also using one for panel fabrication too, as they are far better at than I am . We produce all of the drawings and equipment list while they do the actual fabrication as per our specifications. And it leaves me free to concentrate on the engineering side. -Brian Brian, is the shop you us a UL listed shop or is a UL listing on the control panels something that isn't necessary in the amusement park controls industry? Link to comment Share on other sites More sharing options...
IOE Posted February 21, 2014 Share Posted February 21, 2014 ^We get our panels UL approved by a UL inspector in the shop. UL is a requirement for panels in the amusement industry just as CE is in Europe. Link to comment Share on other sites More sharing options...
Blue Turbo Posted February 25, 2014 Share Posted February 25, 2014 ^It's really cool to hear your insider information Link to comment Share on other sites More sharing options...

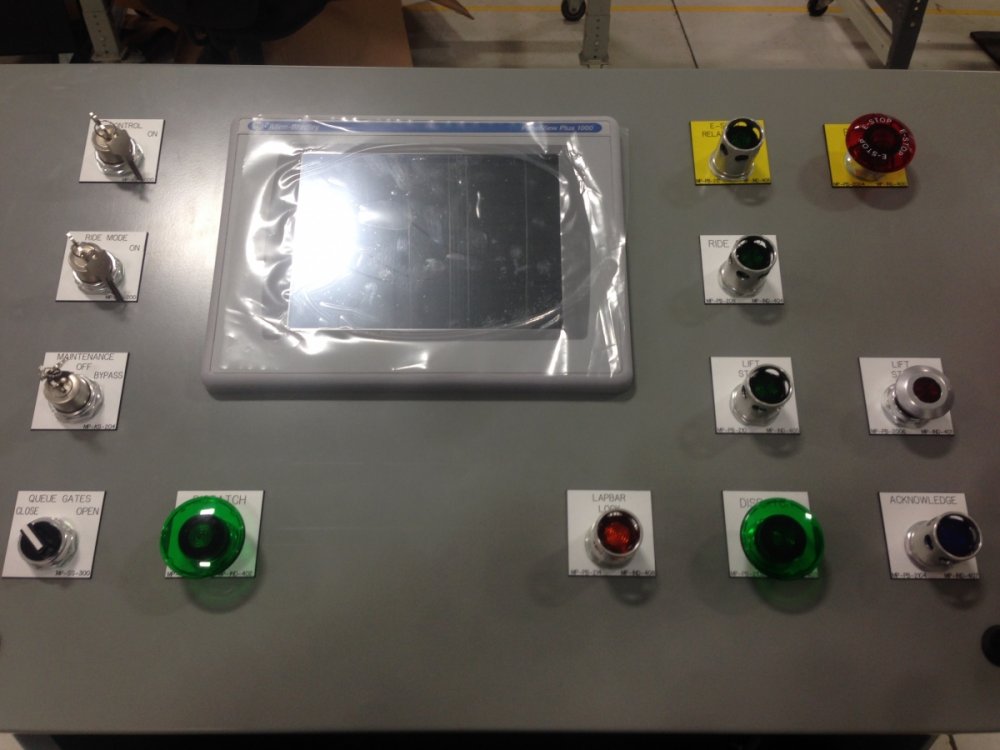

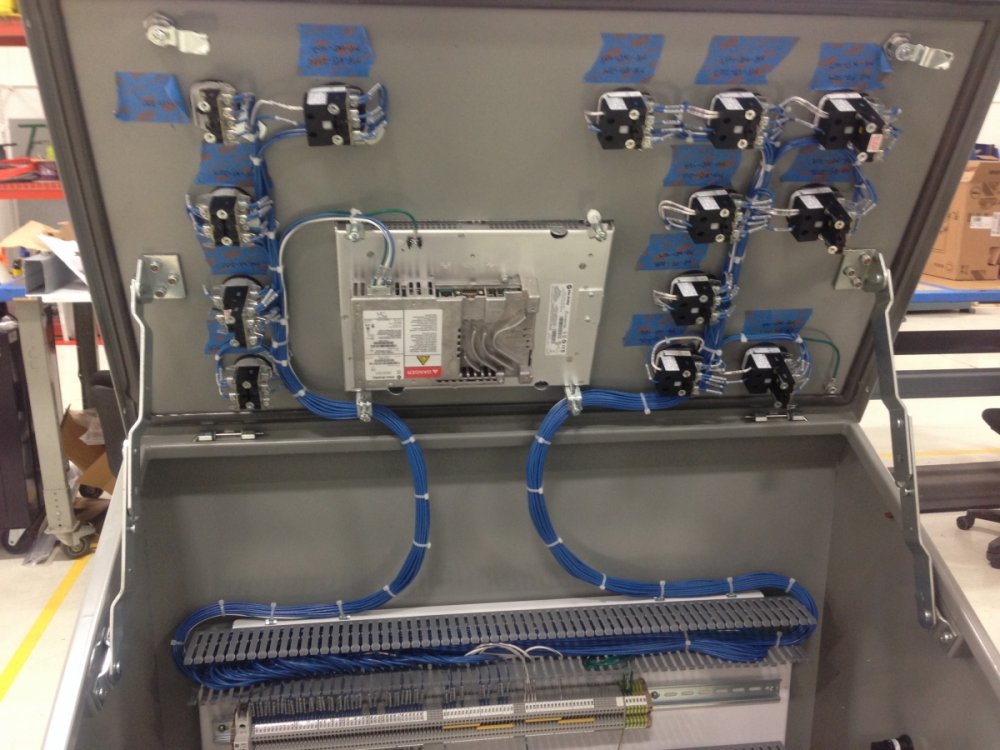

IOE Posted February 28, 2014 Share Posted February 28, 2014 Kentucky Kingdom's Lightning Run panel is just about ready to ship: Link to comment Share on other sites More sharing options...
Coasterbp Posted February 28, 2014 Share Posted February 28, 2014 Brian, do you normally have a PLC in the OCCs to handle button presses and panel lights? Then that info gets sent to the Main ride PLC (or PLCs if running dual...) correct? I don't see the PLC in this console and the wiring for you buttons/indicators are going right to terminal blocks which I would assume would mean that they will end up going directly to the main ride PLC? -=CoasterBP Link to comment Share on other sites More sharing options...
traincrossin Posted February 28, 2014 Share Posted February 28, 2014 ^^I noticed you don't have an unlock lapbar button, is that just going to be done in the touch screen? Link to comment Share on other sites More sharing options...
IOE Posted February 28, 2014 Share Posted February 28, 2014 Brian, do you normally have a PLC in the OCCs to handle button presses and panel lights? Then that info gets sent to the Main ride PLC (or PLCs if running dual...) correct? I don't see the PLC in this console and the wiring for you buttons/indicators are going right to terminal blocks which I would assume would mean that they will end up going directly to the main ride PLC? -=CoasterBP Typically there isn't a PLC itself in the cabinets but often we use remote I/O racks that will make it look like a PLC is in there. The advantage to that is you just need to run power and Ethernet back to the main cabinet instead of all the individual wires. But in this application, it was easier to have all of the panel I/O back in the main cabinet -Brian Link to comment Share on other sites More sharing options...
IOE Posted February 28, 2014 Share Posted February 28, 2014 ^^I noticed you don't have an unlock lapbar button, is that just going to be done in the touch screen? That is correct. In normal operation, the lap bars will unlock automatically when the train parks in the station so the only function you typically need is the locking function. If you need to unlock a particular row or seat, you can do that through a panelview screen. We will have control over individual seats on this ride so the entire train will not need to be unlocked to release one lap bar. -Brian Link to comment Share on other sites More sharing options...

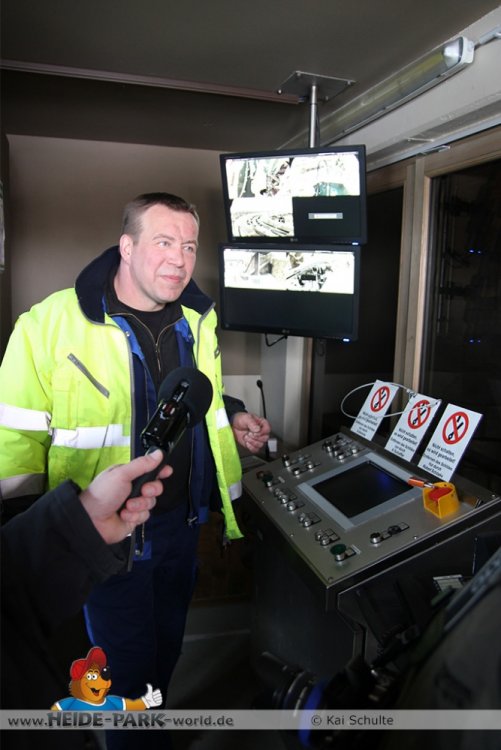

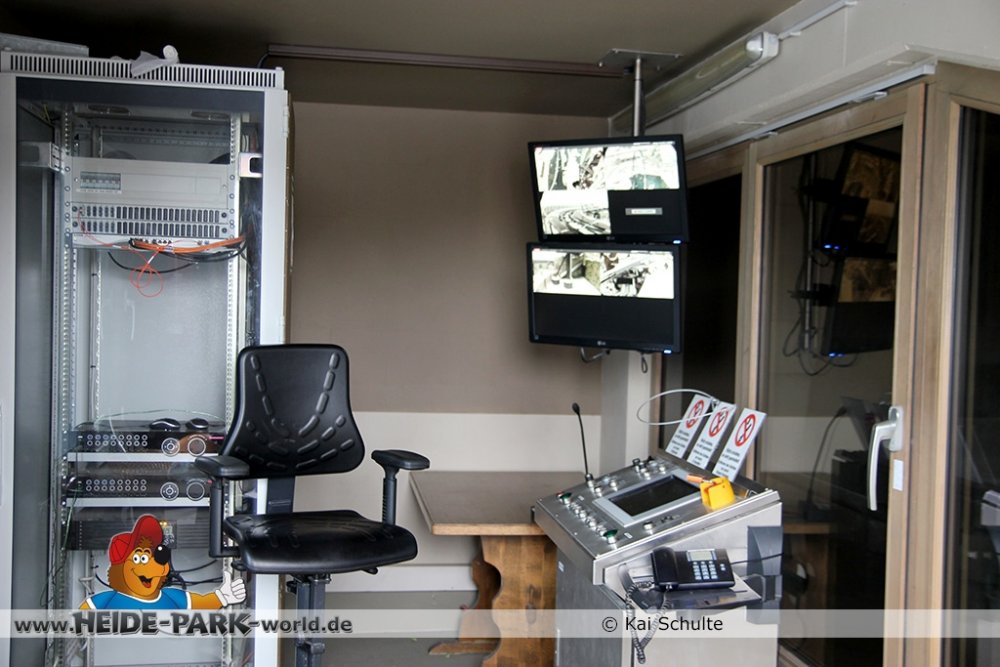

alabardo84 Posted March 3, 2014 Share Posted March 3, 2014 here is the controll pannel krake (heide park) Link to comment Share on other sites More sharing options...
rcjp Posted March 3, 2014 Share Posted March 3, 2014 I love how simple these B&M panels look. Link to comment Share on other sites More sharing options...
traincrossin Posted March 4, 2014 Share Posted March 4, 2014 I think Krake wins the award for best chair in a control booth. Link to comment Share on other sites More sharing options...
scottm13 Posted March 4, 2014 Share Posted March 4, 2014 ^I don't know about that, what about the B&M's with the panels built into the chair? [attachment=0]uploadfromtaptalk1393920137054.jpg[/attachment] Link to comment Share on other sites More sharing options...
KingRCT3 Posted April 13, 2014 Share Posted April 13, 2014 Sorry if it has been posted before, but that... "panel"? is pretty original! Montaña Rusa - Acuaparque de la Caña Link to comment Share on other sites More sharing options...
FutureCoasterEGR Posted May 22, 2014 Share Posted May 22, 2014 ^^I noticed you don't have an unlock lapbar button, is that just going to be done in the touch screen? That is correct. In normal operation, the lap bars will unlock automatically when the train parks in the station so the only function you typically need is the locking function. If you need to unlock a particular row or seat, you can do that through a panelview screen. We will have control over individual seats on this ride so the entire train will not need to be unlocked to release one lap bar. -Brian As a ride op at various coasters in BGW, this is a standard feature... Some older rides, or rides with smaller trains have pushbuttons for harness unlock, but might as well have the feature and eliminate one less button if you can! Link to comment Share on other sites More sharing options...
FutureCoasterEGR Posted May 22, 2014 Share Posted May 22, 2014 Also, I love control panels... I hope to end up making them for rides some day (after college... 1 yr down, 3 to go!)... Working on a USB powered, Arduino controlled, NoLimits 2 panel right now... just waiting on paychecks! Link to comment Share on other sites More sharing options...
Diamondbacker27 Posted May 22, 2014 Share Posted May 22, 2014 I really want to see Banshee's panel. Link to comment Share on other sites More sharing options...

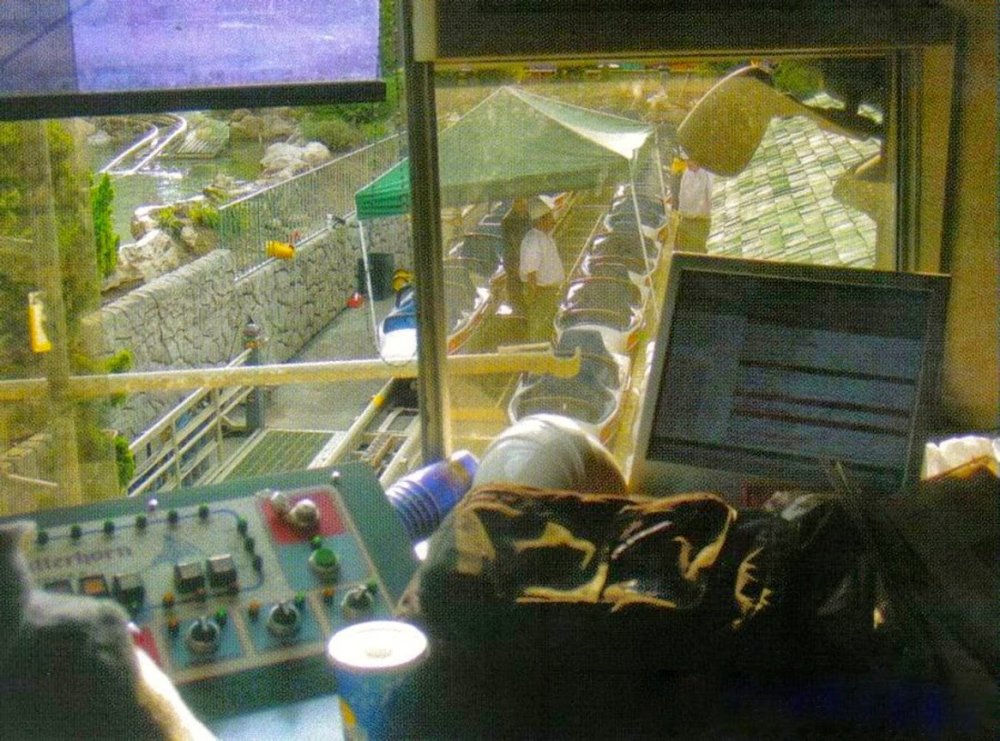

sfmman2000 Posted May 24, 2014 Share Posted May 24, 2014 Here is a rare shot of inside the Matterhorn's control tower: Picture found on the Arrow Development blog: http://arrowdevelopment.blogspot.com/2014/05/the-matterhorn-under-hood.html It's a really fascinating blog. Definitely worth taking some time to read. Link to comment Share on other sites More sharing options...

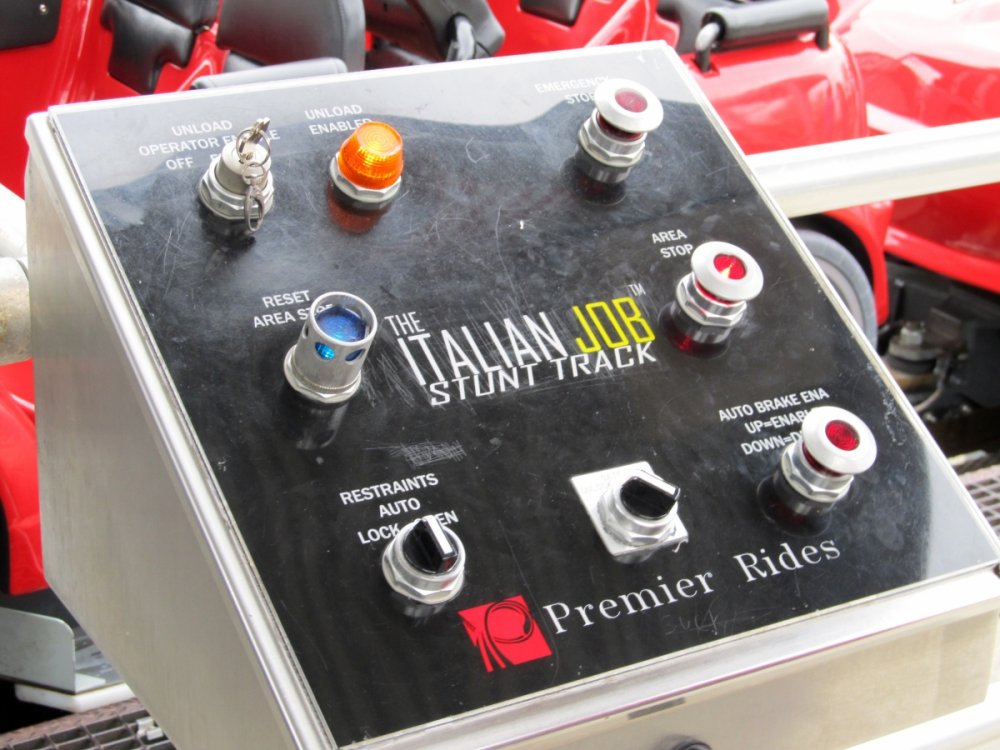

TunaSled Posted May 24, 2014 Share Posted May 24, 2014 DSC08958.JPG KI Stunt Coaster's secondary panel still with the Italian Job logo on it. Link to comment Share on other sites More sharing options...
dales414 Posted July 22, 2014 Share Posted July 22, 2014 (edited) Here are my control panel's pictures. I used to word at Mega-Parc in Quebec city, the second largest indoor amusement park in North America. The first picture is the control of the Spring ride from Moser. It's been manufactured in 2001. It's the original control box, that has been a little modified. Control explanation : 1 - Ligthing control 2 - Safety bar closed : the pilot light lit when all the safety belts are in the closed position. If the light isn't lit, the ride can't start. 3 - Control panel on/off 4 - Hydraulic pump on/off 5 - Ride counter : It counts the number of time the ride has been started. 6 - Alarm reset : The light lit when there is an error with the position's sensor or other internal circuitry. Push the button to reset the alarm. 7 - Bell : it's been added. The bell has to be ringing to start the ride. 8 - E-stop : It has been modified. At first it needed a key to reset it and when we pushed it, the ride would stop and stay in its position. The mechanics had to come and reset the ride. Now, it's a classic push-turn button. When it's pushed, the pump shut off, and the ride comes back to the loading area. 9 - E-stop pilot light : turns on when the e-stop is pushed or if the ride puts itself into e-stop mode. 10 - Cycle start : to start the ride, the safety belt pilot light must be turned on and we must push the bell and start button at the same time. 11 - Cycle abort : brings the ride back to the loading area with a programmed sequence (in opposition to the e-stop which turns off the pump and open the cylinder valve to bring the ride back to the loading platform) Second picture is the controls from the ride "Up, up and away" from Zamperla. The ride has been installed in 1988 and I'm pretty sure that the control panel is not the orginial one (even if it looks old). 1- Ride duration : Each number equals about 2 minutes, so you can see that the duration of the ride is about 3min 2 - Up timer : There is a delay between the beginning of the rotation of the ride and the moment the ride starts to lift. Each number equals 10 seconds. 3 - Control panel on/off : when it's off, the alarm can still be used 4 - Manual/automatic mode 5 - E-stop : stops the ride in any position 6 - Cycle start 7 - Cycle stop : brings the ride back to the loading area with a programmed sequence. The ride comes back to the ground, then the motors are stopped and the brakes engaged. 8 - Accoustic alarm 9 - Lift gondolas : Lift the center of the ride if the Auto/man selector is in the manual position. 10 - Gondolas down : Bring the center of the ride back to the ground if the auto/man selector is in the man position. The two last buttons has to be maintained pushed for the ride to move. At the moment the button is released,the movement stops. Finally, the last picture represents the controls of two rides : kiddie bumper cars and adult bumper cars. The kiddie version is from Zamperla and the adult one is from Bertazzon. The two control panels were built by the mechanics of the park to replace the older ones (who were not the original ones by the way). 1 - Digital timer : the ride duration is 3 minutes 2 - Control panel on/off 3 - Speed #1 and speed #2 : on the kiddie version, the speed #2 isn't wired to a contactor, so only speed one is available. On the adult version, the two speeds are wired to a contactor, but, the voltage of speed #1 isn't sufficient to make the cars move. So, only speed #2 is used. Note : there is also two other contactors in the electrical panel for Speed #3 and Speed #4. But, the bumper cars go too fast if those speeds are used, so they are not wired to the control panel. People could hurt themselves if they were used, as it's going really fast. 4 - E-stop which cuts the power to the cars 5 - Accoustic alarm I'll try to have some pictures of other control panel, but I'm not an employee anymore, so it may be a little more difficult. I would really like to show you the roller coaster panel (Mack 1988) Finally, sorry if there is some mistakes as english is not my native language. Edited July 22, 2014 by dales414 Link to comment Share on other sites More sharing options...

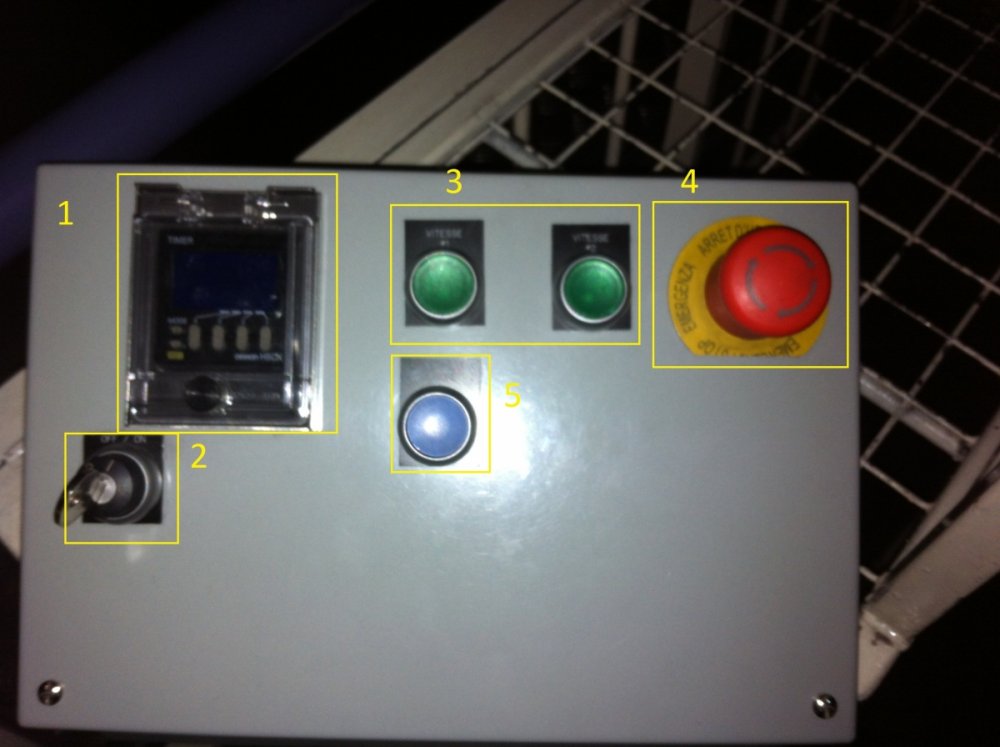

sfmman2000 Posted July 22, 2014 Share Posted July 22, 2014 ^ Cool, thanks for posting the control panel pictures and all of the details about them! Here's a shot I've been meaning to post: Not a full ride control panel, but there are buttons. It's the catwalk of the old Haunted Castle at the Santa Cruz Beach Boardwalk. The red button on the right is an e-stop which cuts power to the track. The bottom two buttons turn on and off the work lights. Link to comment Share on other sites More sharing options...
DoinItForTheFame Posted July 22, 2014 Share Posted July 22, 2014 I really want to see Banshee's panel. Given how similar all B&M control panels are, I venture to say it looks VERY similar to Gatekeepers. It probably looks a lot like this. Link to comment Share on other sites More sharing options...
