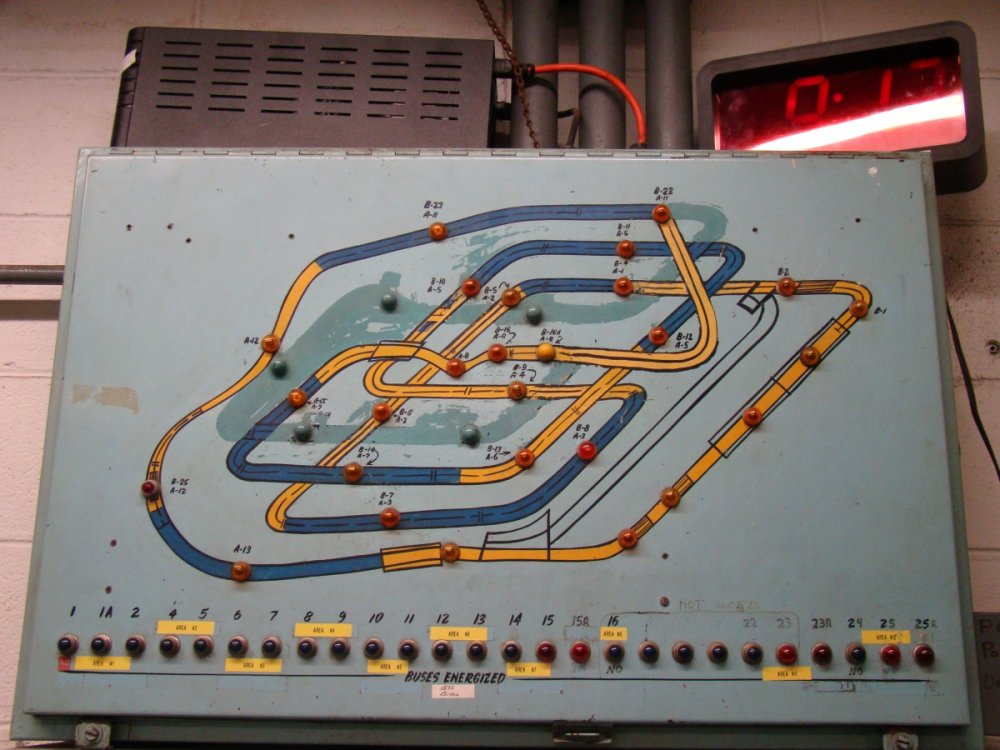

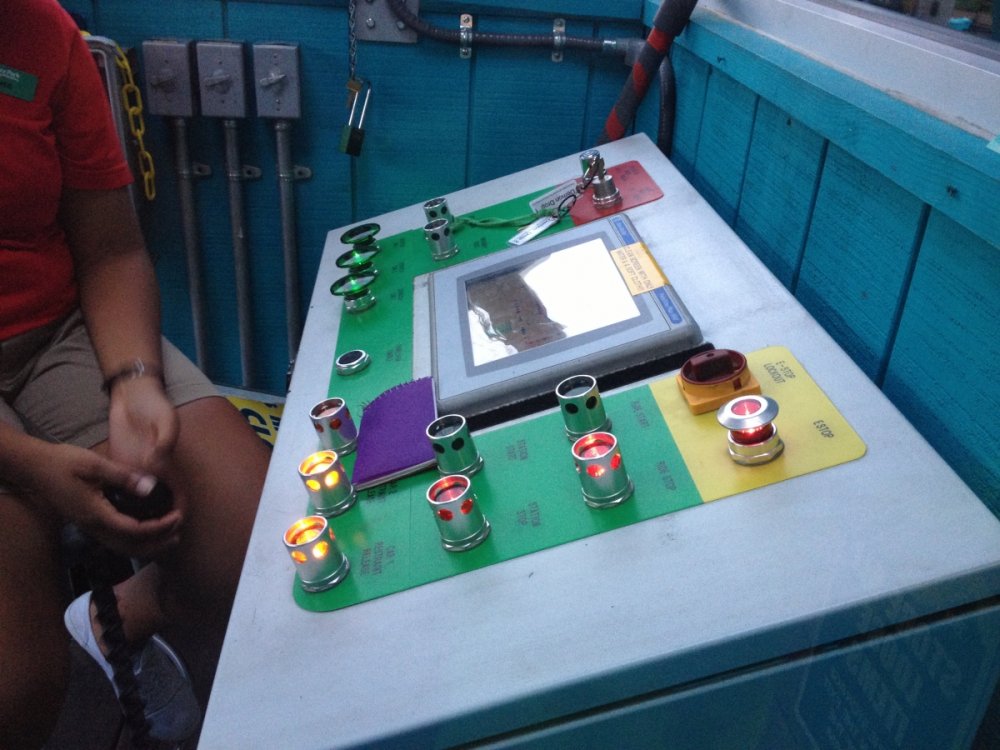

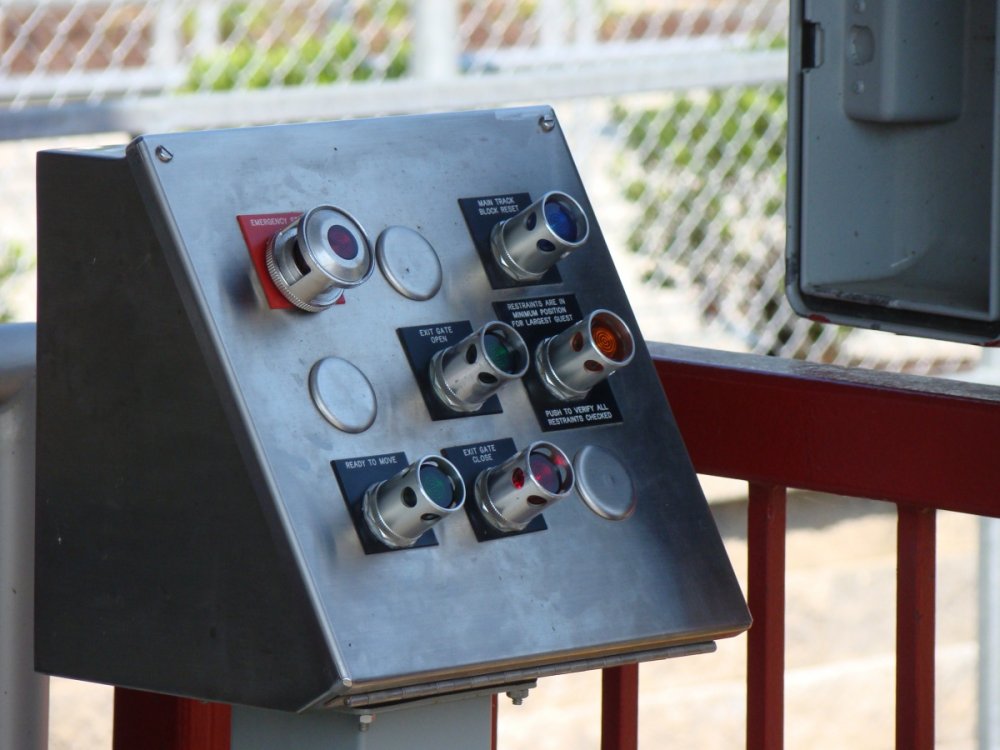

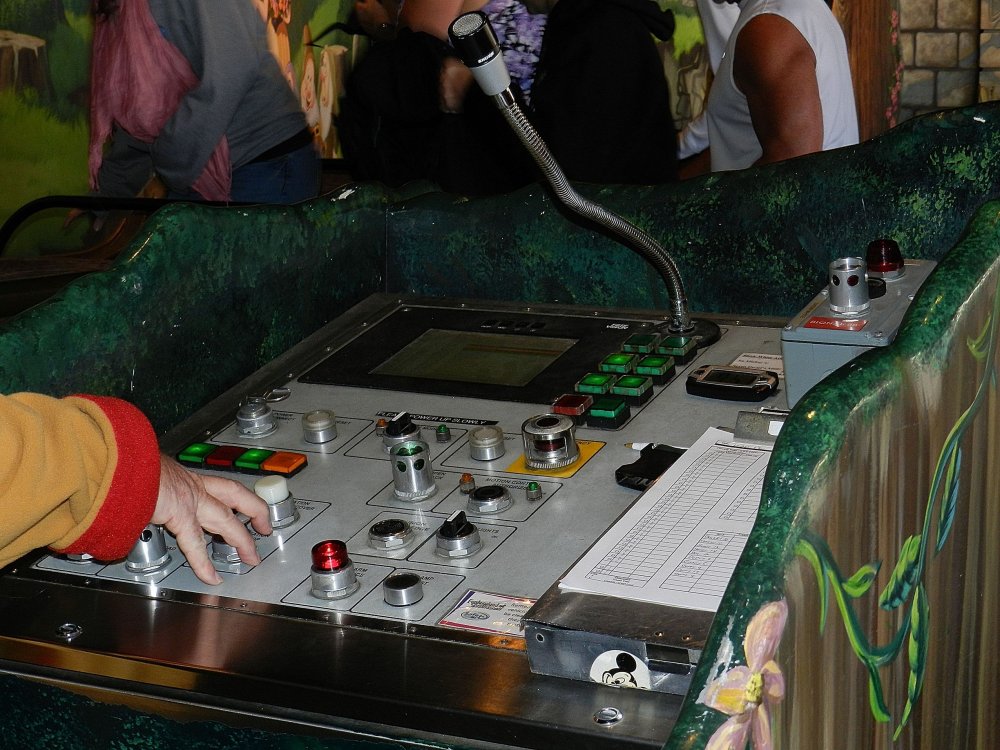

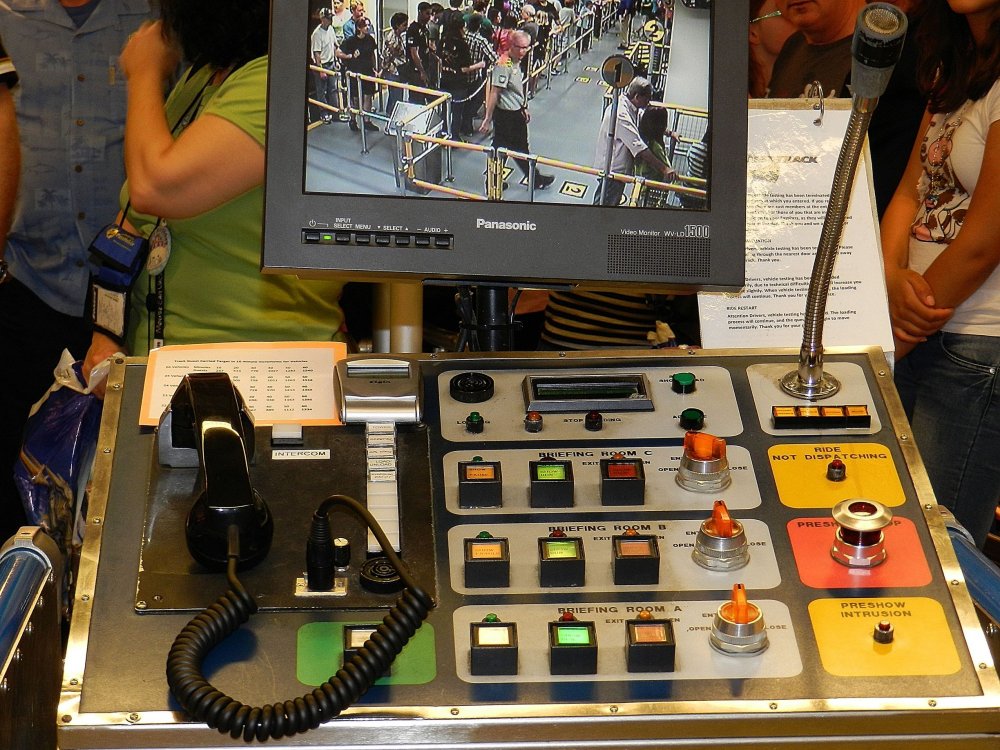

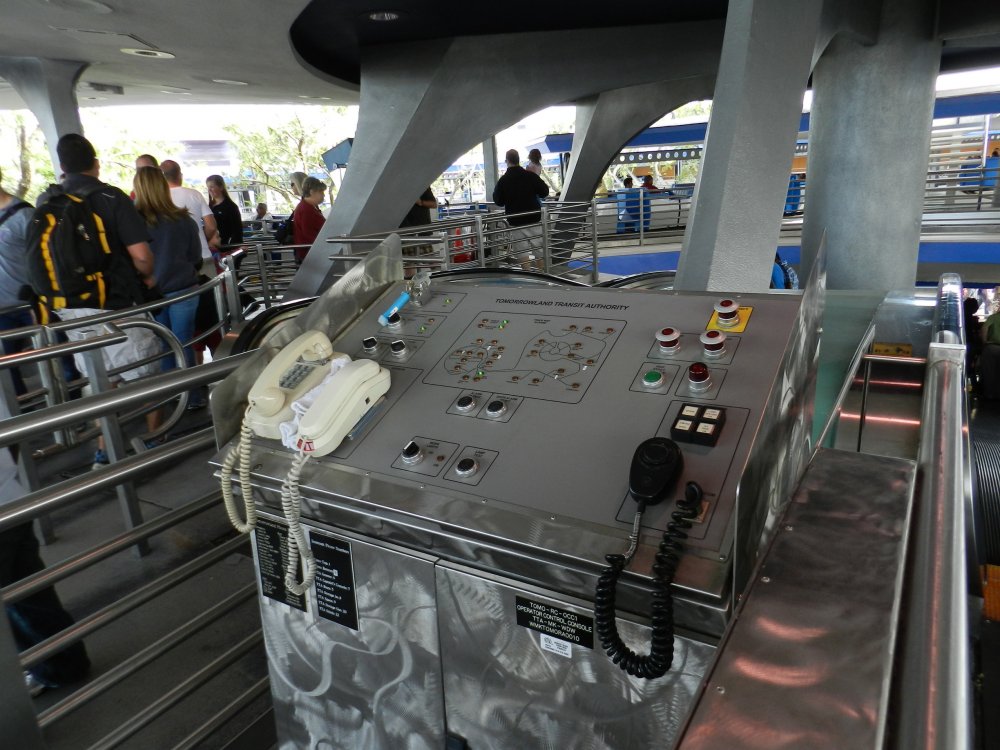

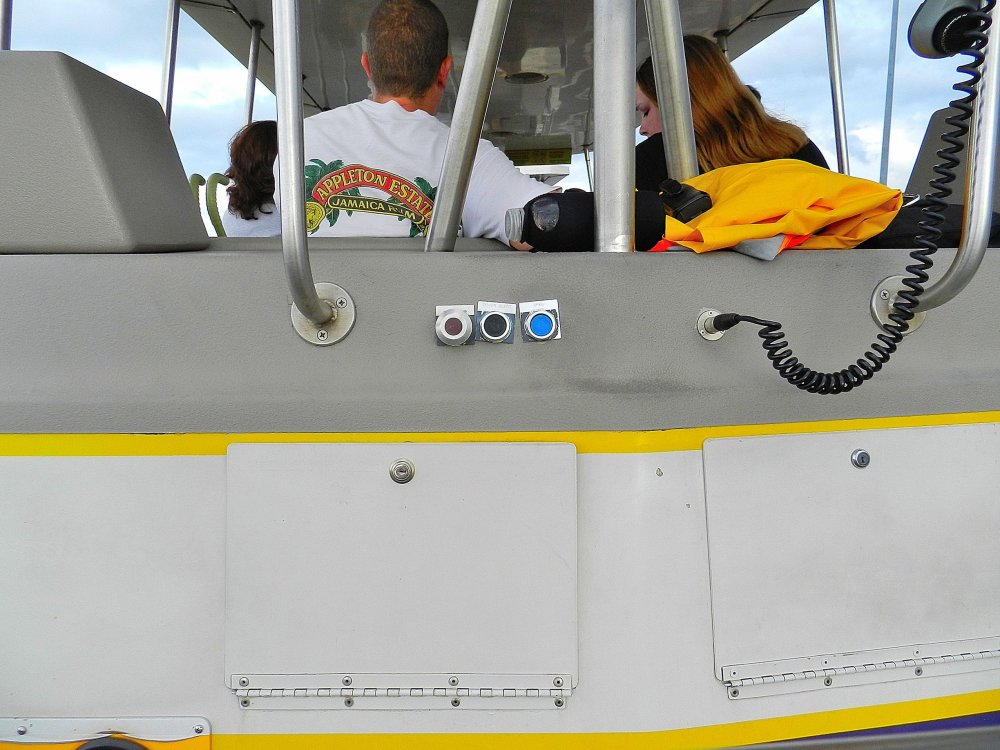

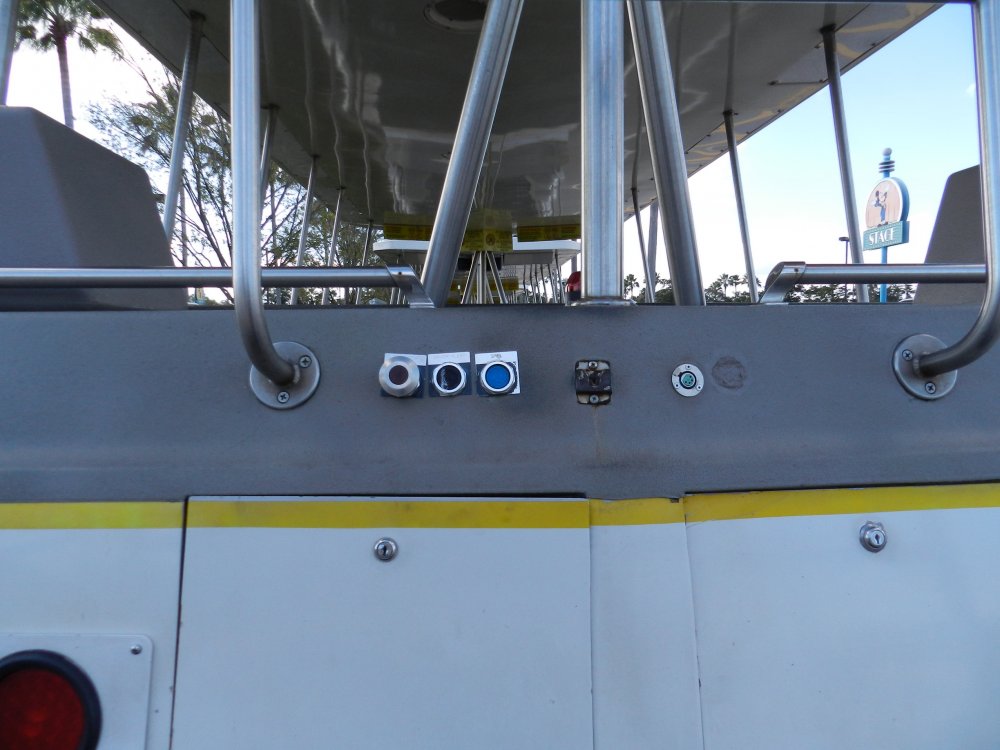

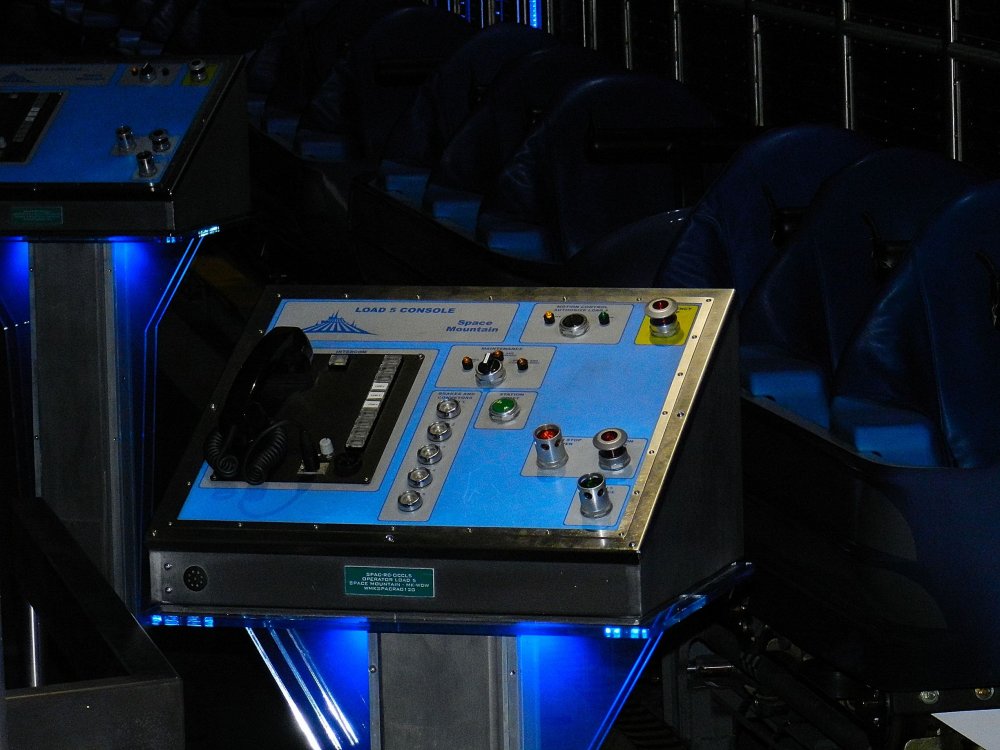

The SETGO Guys Posted March 26, 2012 Share Posted March 26, 2012 I take my fair share of Control Panel pictures. Dinosaur (Animal Kingdom) Pre-Show Control Disney Parking Tram Star Tours Disney Parking Tram Test Track Pre-show Space Mountain Snow Whites Scary Adventures Peoplemover Journey into your imagination with figment Link to comment Share on other sites More sharing options...

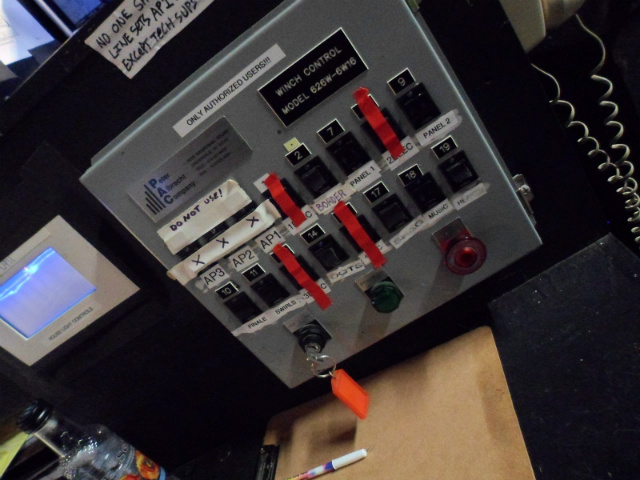

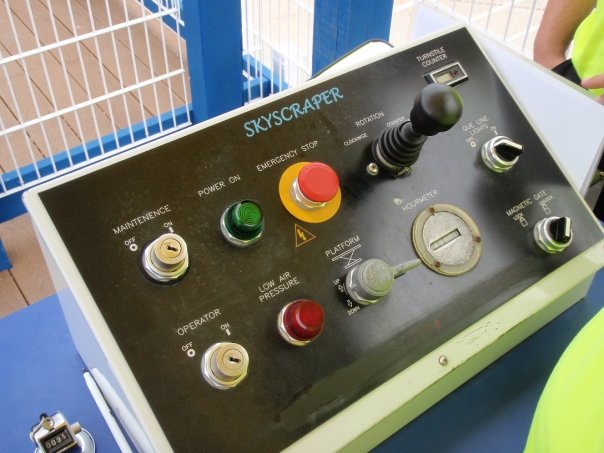

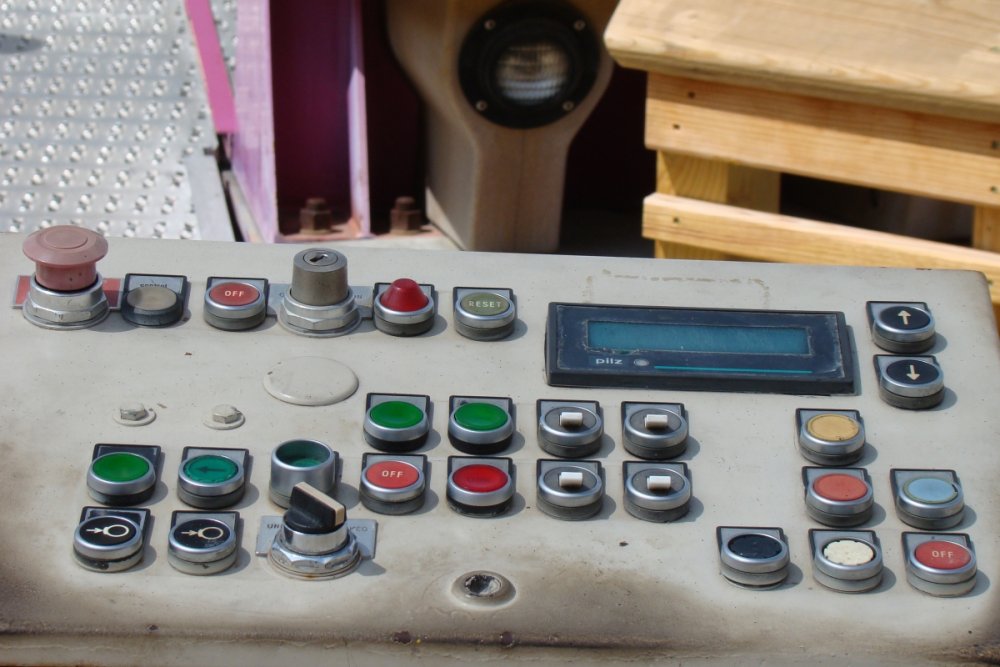

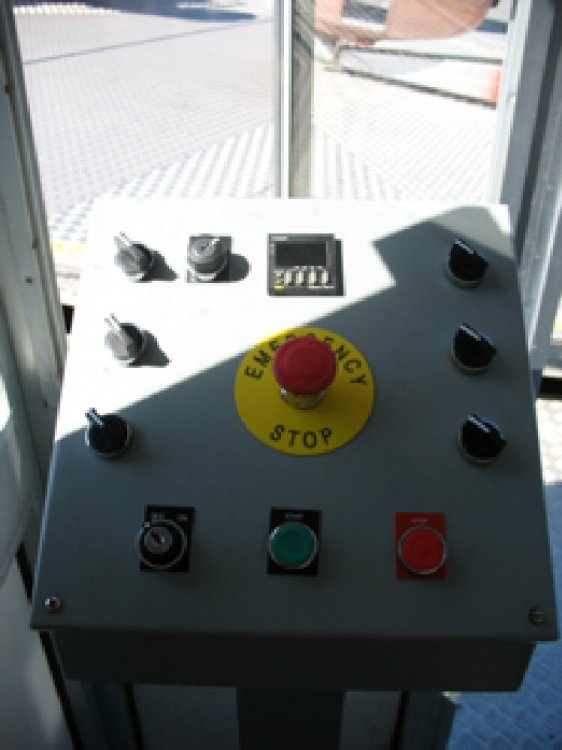

99er Posted March 27, 2012 Share Posted March 27, 2012 I have a ton of pictures of panels but most are printed pictures from an old film camera. One of these days I will get around to scanning them in. Here is what I have on my computer that people haven't already posted. Fly System panel at the Goodtime Theater @ Cedar Point. Giant Wheel @ Alabama Adventure Mind Spinner @ Alabama Adventure Zoomerang @ Alabama Adventure Skyscraper @ Cedar Point. Link to comment Share on other sites More sharing options...
mlimardi Posted September 24, 2012 Share Posted September 24, 2012 Does anyone have a pic of a Huss Top Spin panel? Link to comment Share on other sites More sharing options...

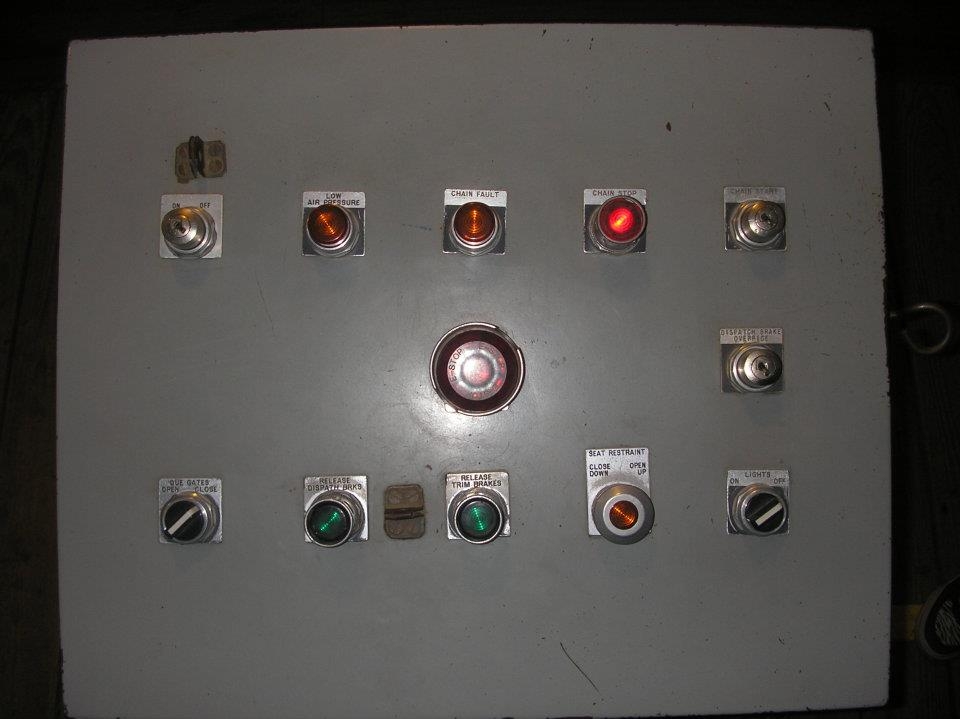

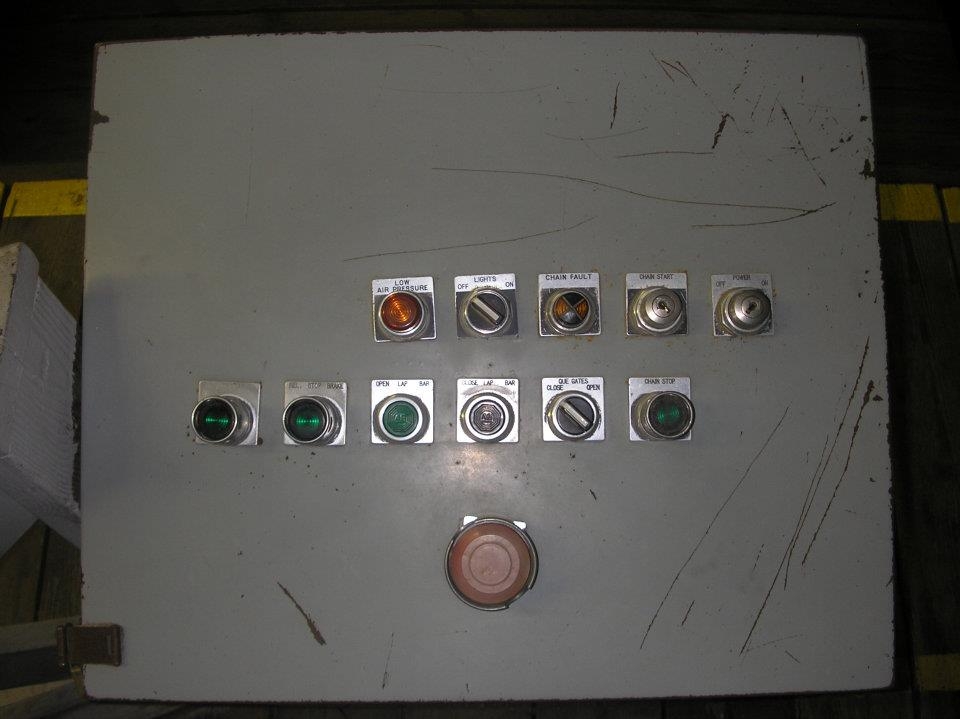

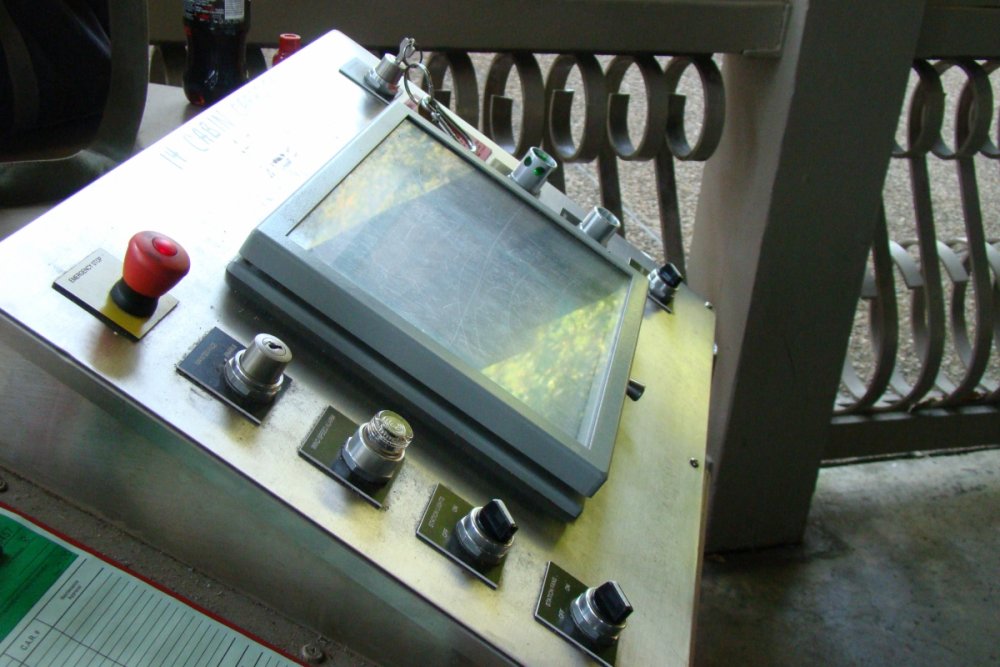

scottm13 Posted September 24, 2013 Share Posted September 24, 2013 I'd like to bump this thread, anyone else have some pictures of control panels they would like to share? Here's a few of my favorites: (not taken by me, and sadly I do not have the sources to them) [attachment=0]great_adventure_052.jpg[/attachment] [attachment=1]Griffon-23.jpeg[/attachment] [attachment=2]thumb_009_90.jpg[/attachment] [attachment=3]great_adventure_114.jpg[/attachment] Does anyone have a B&M flyer? I would really like to see one of those! Link to comment Share on other sites More sharing options...
ajfelice Posted September 24, 2013 Share Posted September 24, 2013 Ravine Flyer II Sorry about the lack of quality. I'll give you a crash course of how to operate it. Your main switches and buttons are found on the bottom towards the middle. Third green switch in from the left is the gates. You first open the gates by twisting that switch to "open" and letting go right away. The switches are spring loaded so they only stay on open or close if you hold them there, as the switch automatically goes back to the center once you let go. If you lay on the switches or buttons too long the ride faults. Once everyone is mostly seated or the lapbars are all up so none of them have to be manually opened, you twist the lap bar switch found next to the gates switch on the right to "close" and let go just like the gates. Usually you can close the gates at the same time as the lap bars by twisting the same gate switch to "close." Once you get two thumbs up, you press and hold the yellow "dispatch" button until the last car of the train clears the end of the station. When the next train arrives back into the station and parks, you can unlock the lap bars and open the gates at the same time. Along the top you have Ride Stop on the top left, and Emergency Stop on the top right. Below the E-stop is the reset button for faults and the red fault indicator light. Below that is the maintenance mode enable key switch, and further down is the single or double dispatch mode enable key switch (double requires the operator in the back of the station to hold a button just like the dispatch on controls). In the bottom right corner is the main power key switch. On the left below Ride Stop is the buttons used by maintenance for brakes, air compressors, transfer track, and the lift power switch is to the left of the gates switch. Of course, the screen is a touch screen with oodles of functions. Link to comment Share on other sites More sharing options...
Seddy Posted December 28, 2013 Share Posted December 28, 2013 Does anyone have a B&M flyer? I would really like to see one of those! I wish I had my old Metro PCS nokia slider phone. I had a good pic of SMUF's panel, along with GASM, Deja Vu and Thunder River's panels. I notice you put 'El Toro's second panel' why did it have two panels? Or was one a remote panel for verification. KK's panel is HUGE and I was expecting a touch screen like a flyer. I absolutely love this thread! Link to comment Share on other sites More sharing options...

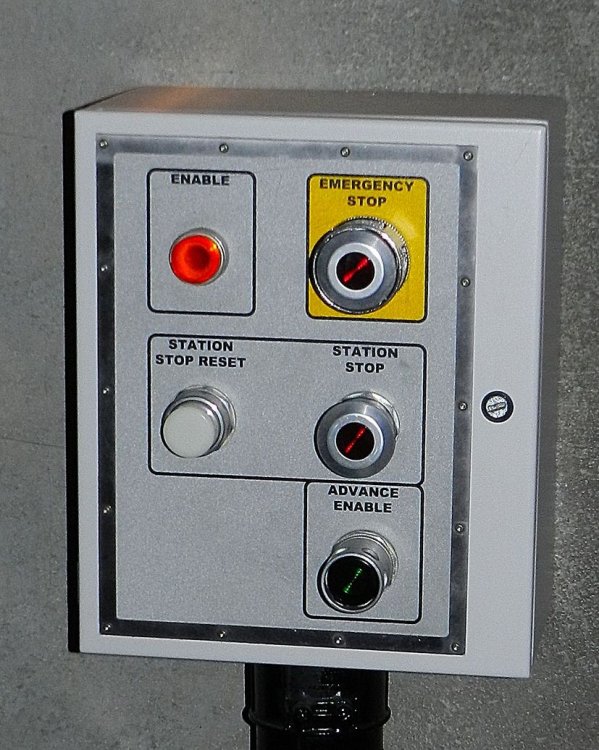

Ccron10 Posted December 28, 2013 Share Posted December 28, 2013 I took quite a few photos over the past two years of control panels at some of the parks I've visited. I always find it interesting when certain rides are operated in a different as well as similar way. Here is I305's secondary control panel. It's pretty simple. This is the transfer track control panel for I305. This is Verbolten's control panel from a tour I was on in 2012. I think this is the show control panel for Escape from Pompeii. When Dorney got Demon Drop, it looks like they got a new control panel for the ride. Kingda' Ka's secondary panel. It's kind of similar to I305's. KD's Windseeker secondary control panel looks pretty cool. BGW's Skyride panel. Each station has one of these, which is kind of fancy for a ride like this. SFOT's Oil Derrick's controls is kind of more complicated that what an elevator should probably be. Here is Fire in the Hole's main panel in the maintenance area. This is the layout diagram and you can see how the layout used to be before it was shortened. This is the bottom part of it. Here is Zeus's full control panel at Mount Olympus. It's all manual and kind of makes me cringe everytime I look at this photo. This is the "control panel" for Meteor at Little A-Merrik-A. Completely old-school. Skyride's small control panel at Cedar Point. Spinning Tub ride control panel at City Museum. KI Stunt Coaster's secondary panel still with the Italian Job logo on it. Mr. Freeze's secondary panel at SFStL. Frisbee's control panel at SFFT. Scream's control panel at SFFT, which is an S&S drop tower. Link to comment Share on other sites More sharing options...
Seddy Posted December 28, 2013 Share Posted December 28, 2013 ^Panel OVERLOAD!!! Ok.. so many comments... 1. Demon Drops new panel looks great! I remember the old panel for Free Fall at SFOG. I'd imagine Demon Drops old panel was similar, if not the same. I remember them being sooo many buttons. Good to see they've simplified things. Lol. I wonder what types of information is displayed on that screen!!! 2. I Lol'd @ 'Restraints are in minimum position for largest guest' I am at a loss of words. 3. Verboltens panel looks extremely complex. I like how there are buttons to power the launches and the vertical drop. Any better shots of this one? Not that im not grateful for your contribution already!! Lol 4. I was just doing a Google search for Mr. Freeze's panel(s) and you post the secondary panel!!! Unfortunately I couldnt find one of the main panel. Im just interested in seeing how the dual launches work with the panel. Same goes for S:EFK. Link to comment Share on other sites More sharing options...

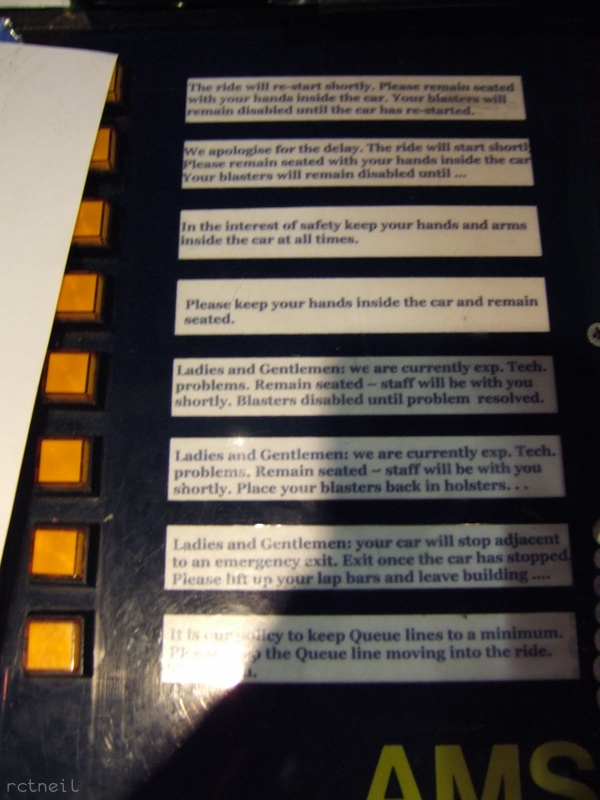

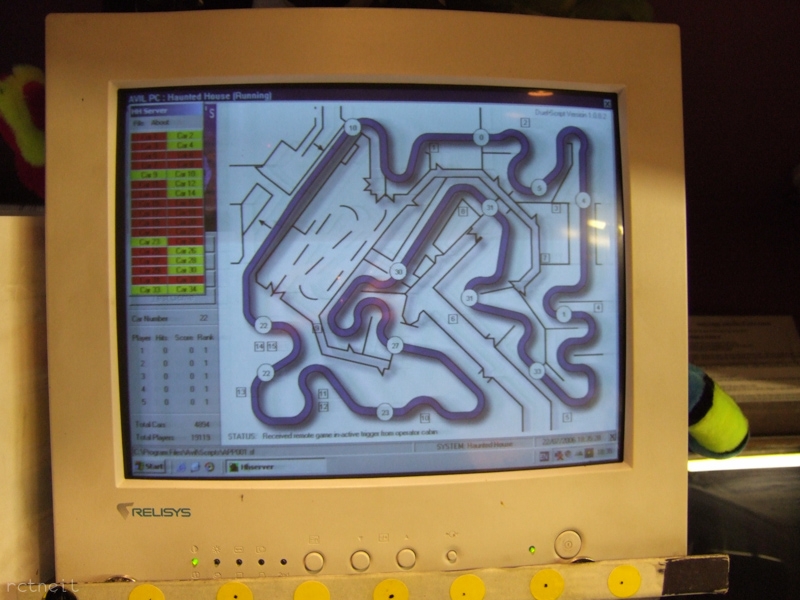

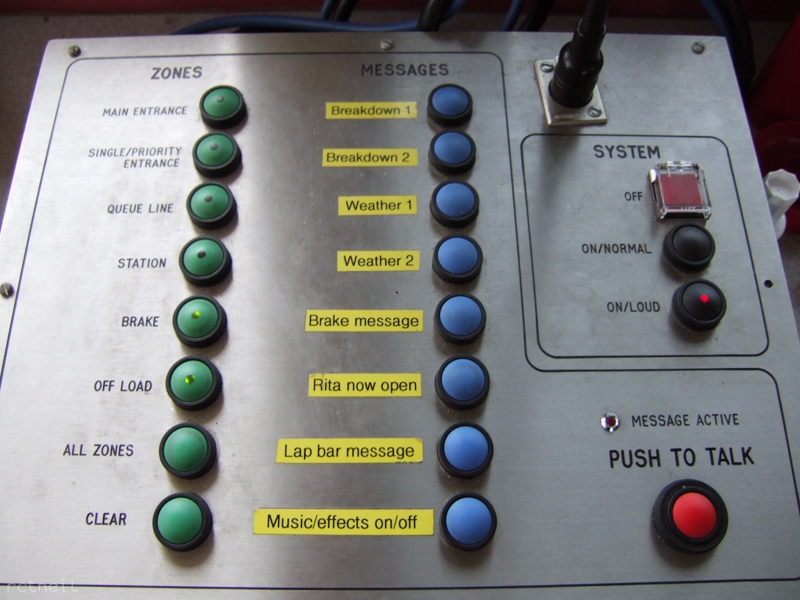

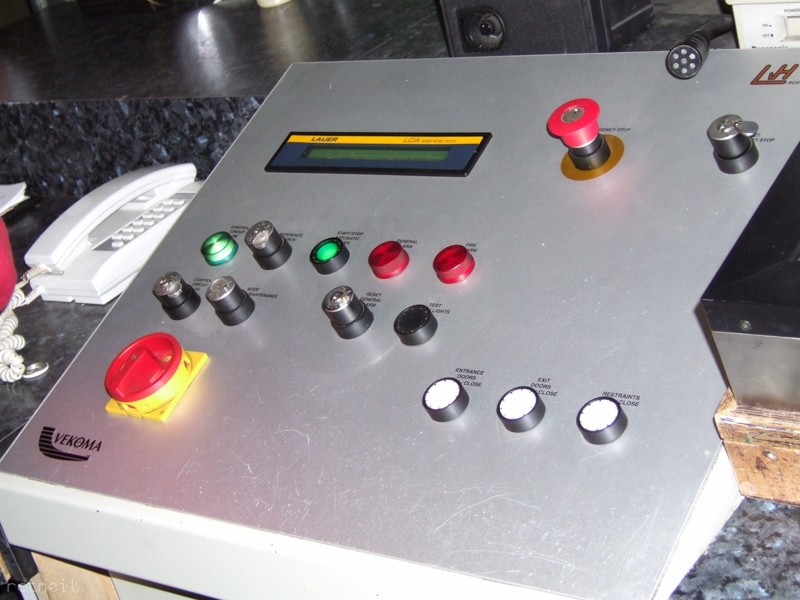

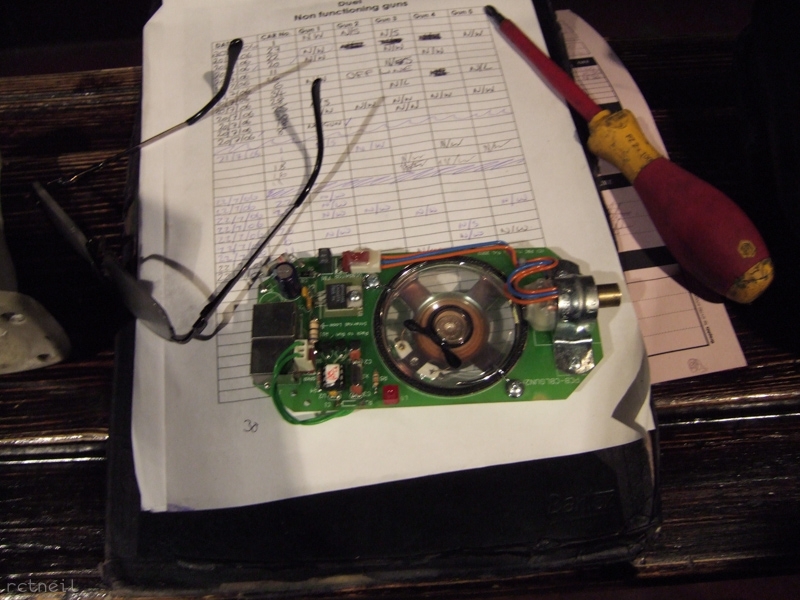

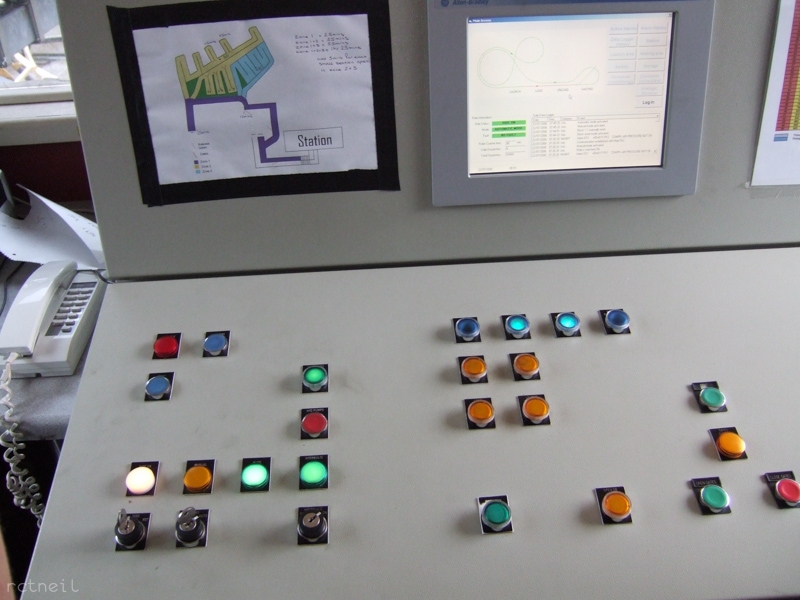

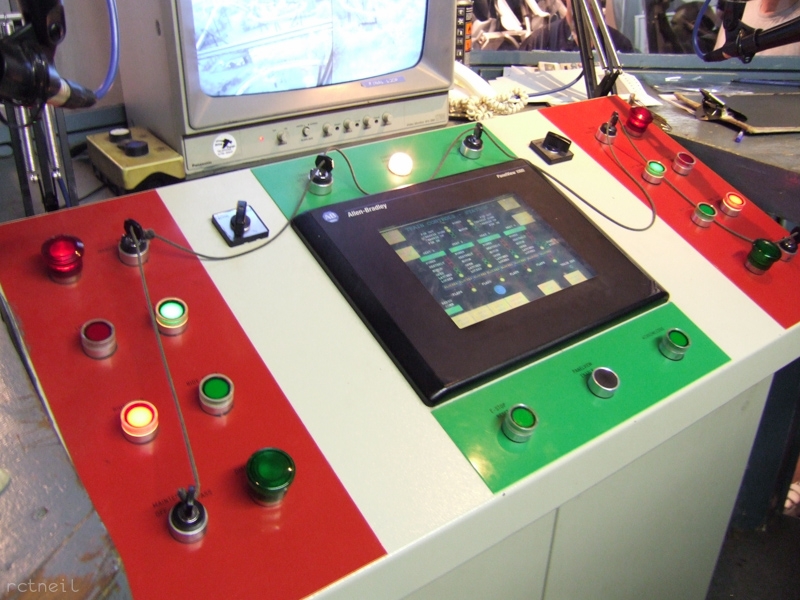

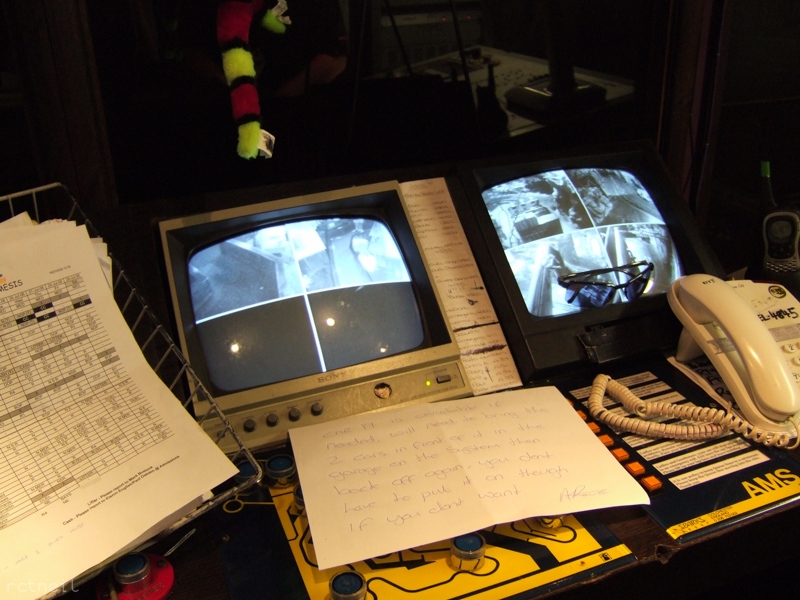

rctneil Posted December 28, 2013 Share Posted December 28, 2013 Here are some from Alton Towers taken in 2006: Hex - The Legend of the Towers Rita: Duel - The Haunted House Strikes Back!: Bonus - Control board from inside a blaster. Contains, vibration motor, speaker, laser and red LED Air: Enjoy! Link to comment Share on other sites More sharing options...
rcjp Posted December 28, 2013 Share Posted December 28, 2013 Sadly I don't have any pictures but I am really enjoying this thread, really interesting to see how different companies make their panels. Link to comment Share on other sites More sharing options...

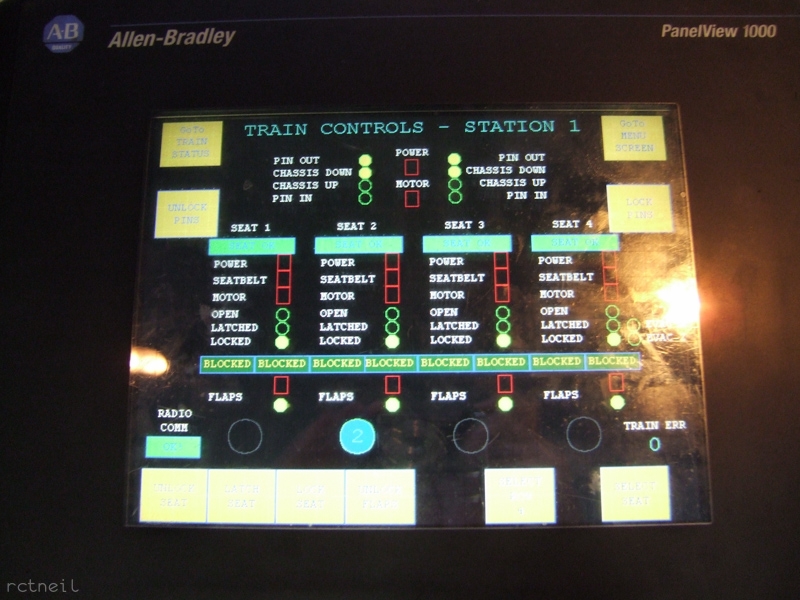

Seddy Posted December 29, 2013 Share Posted December 29, 2013 ^^Im happy to know all flyers have train status screens that are exactly the same. I spent some time behind SMUF's panel and the touch screen fascinated me! Great photo's btw! Keep em comin!!! Link to comment Share on other sites More sharing options...

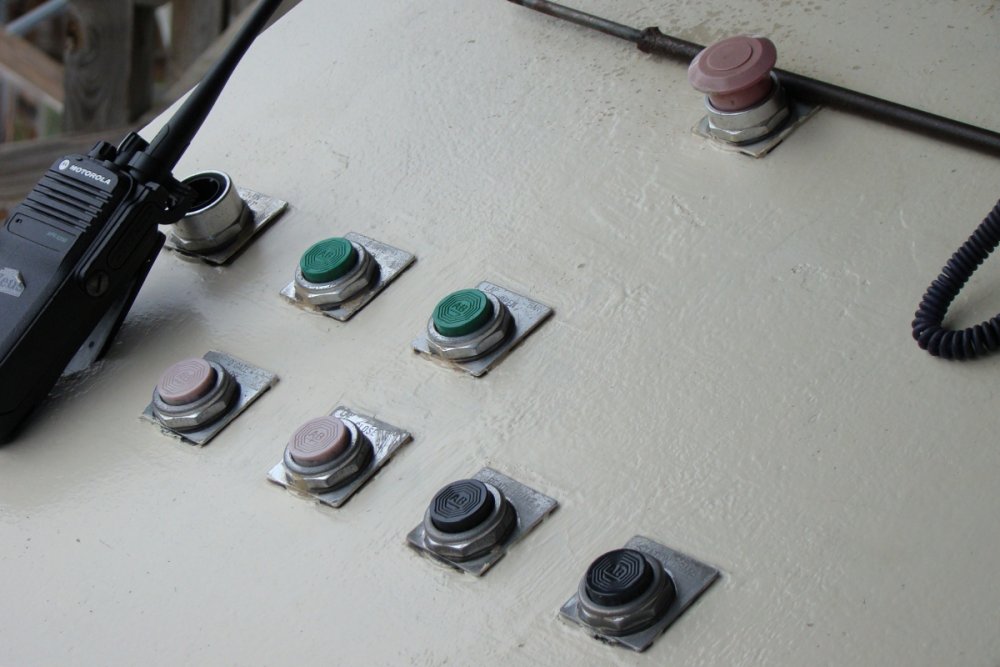

Comeagain? Posted December 29, 2013 Share Posted December 29, 2013 Unceremoniously stolen from a friends Facebook. All are from Silverwood. And all of these others make our consoles so pitifully unloved... Tremors Corckscrew Timber Terror Aftershock (GIB) Panic Plunge (Drop Tower). Link to comment Share on other sites More sharing options...
Seddy Posted January 2, 2014 Share Posted January 2, 2014 Finally!! A GIBs panel!! Makes me wanna push the horn button just because. Link to comment Share on other sites More sharing options...

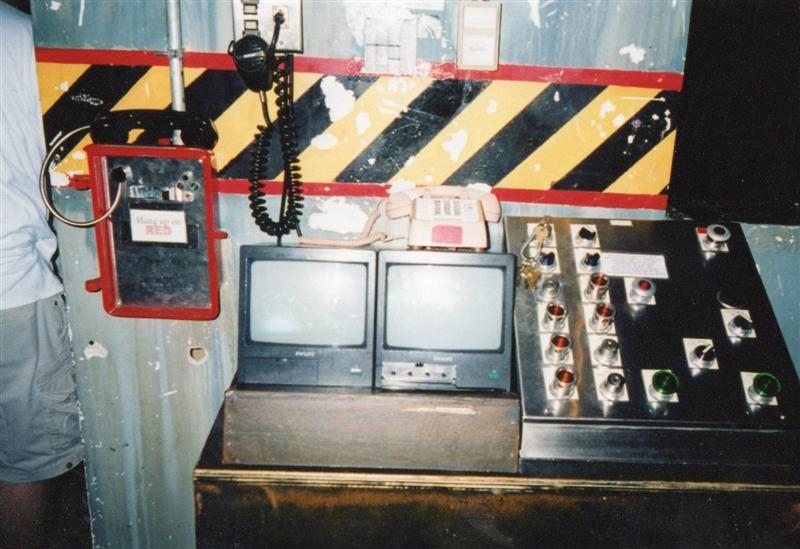

WFChris Posted January 2, 2014 Share Posted January 2, 2014 Mystery Panel at Selva Magica. Link to comment Share on other sites More sharing options...
DanM64 Posted January 2, 2014 Share Posted January 2, 2014 Finally!! A GIBs panel!! Makes me wanna push the horn button just because. Is the panel Aftershock is currently using the same one it used at SFGAm I wonder? Do you know if that Aftershock pic looks the same as Deja Vu's at SFOG did? Link to comment Share on other sites More sharing options...
DJeXeL Posted January 2, 2014 Share Posted January 2, 2014 Does anyone have a B&M flyer? I would really like to see one of those! I wish I had my old Metro PCS nokia slider phone. I had a good pic of SMUF's panel, along with GASM, Deja Vu and Thunder River's panels. I notice you put 'El Toro's second panel' why did it have two panels? Or was one a remote panel for verification. KK's panel is HUGE and I was expecting a touch screen like a flyer. I absolutely love this thread! Air @ AT. Can't read buttons but better than nothing.... Source Link to comment Share on other sites More sharing options...
Seddy Posted January 2, 2014 Share Posted January 2, 2014 Is the panel Aftershock is currently using the same one it used at SFGAm I wonder? Do you know if that Aftershock pic looks the same as Deja Vu's at SFOG did? It looks the same to me with the exception of the mic being built into the panel. I know the buttons below the screen on the green side are for the gates, (entrance and exit/ open and close) and to lock/unlock restraints. The center button near the bottom is the warning horn and the outside buttons are to dispatch the train. The dispatch buttons do not have to be held until the train leaves. Once u hear the current collector rising (sounds like air being released), you're good to go. All those buttons on the yellow side control different parts of the ride (catcher open/close, jog up/down -- 4 buttons per catcher. Platform up/down. Current collector up/down -- the current collector is that little arm that drops down and connects to the train while it's in the station. This sends power to the train to lock and unlock the restraints) If you look at an off ride video of a GIB you'll see it near the front of the train above the track. Link to comment Share on other sites More sharing options...
thrillrider Posted January 3, 2014 Share Posted January 3, 2014 Here are a few that I have. I have a lot more, but I will have to dig into my picture archives to find them. White water landing at cedarpoint. Thunderhawk from geauga lake. Mean streak at cedarpoint Mean streaks transfer controls Flight of fear unload controls at kings island Me at millennium force controls Millennium force lift hill cable control panel The old mill at kennywood. The space shuttle control panel at sfga. Link to comment Share on other sites More sharing options...
scottm13 Posted January 23, 2014 Share Posted January 23, 2014 Does anyone have a B&M flyer? I would really like to see one of those! I wish I had my old Metro PCS nokia slider phone. I had a good pic of SMUF's panel, along with GASM, Deja Vu and Thunder River's panels. I notice you put 'El Toro's second panel' why did it have two panels? Or was one a remote panel for verification. KK's panel is HUGE and I was expecting a touch screen like a flyer. I absolutely love this thread! El Toro's second panel is for maintenance only. The main panel used by the operator is much smaller: [attachment=0]4032387837_47a6e9c33b_b.jpg[/attachment] Does anyone know if all B&M flyers have mushroom buttons? I know that Tatsu and Manta do, but what about S:UF at sfgam? Link to comment Share on other sites More sharing options...
IOE Posted January 23, 2014 Share Posted January 23, 2014 I'm trying to remember specifically when we started adding the mushroom pushbuttons to the B&Ms but I believe it was before the flyers. Air is a bit different as they had requested we use the smaller size of pushbuttons as that's what they are used to. I SHOULD have a lot more of these to add but the few pics of the booths I took, people have already posted (the CGA Gold Striker one made my day to see). I do have this one however: Phantom's Revenge at Kennywood As for the B&Ms and GCIs, I can answer pretty much any questions on how those work, so feel free to ask! Link to comment Share on other sites More sharing options...
DJeXeL Posted January 23, 2014 Share Posted January 23, 2014 ^Did you work for Consign @ some point? Link to comment Share on other sites More sharing options...
IOE Posted January 24, 2014 Share Posted January 24, 2014 (edited) ^Yes, I worked for Consign for over 13 years before forming Irvine Ondrey Engineering about a year and 1/2 ago. We did the controls this past year for Gold Striker and White Lightning and are currently working on Lightning Run at Kentucky Kingdom. You can check us out on facebook (http://www.facebook.com/IrvineOndreyEngineering) as we try to post information and pictures from our own unique perspective. And yes, we'll definitely post more panel shots both there and here if you want them. I forgot about that Air panel. That was one of my projects so if you are curious I should be able to dig up what everything on the panel does. Edited January 24, 2014 by IOE Link to comment Share on other sites More sharing options...
DJeXeL Posted January 24, 2014 Share Posted January 24, 2014 ^That's great! Yea I liked your FB page already. Congrats on creating your own company. Link to comment Share on other sites More sharing options...
Seddy Posted January 24, 2014 Share Posted January 24, 2014 Does anyone know if all B&M flyers have mushroom buttons? I know that Tatsu and Manta do, but what about S:UF at sfgam? I do know that SMUF at SFOG has mushroom dispatch buttons as well. And a touch screen just like Air's which shows the status of the trains, seats, flaps, pins, radio comm, etc. But the seats are latched and locked by secondary panels (there's one on each side) that also control the air gates. There is a single mushroom dispatch button on the secondary panel as well. Like any coaster, that button must be pressed along with the 2 on the main control panel in order to initiate dispatch or return a train from the transfer brake. SMUF was my favorite ride to operate because of all of the different components. And time always flew when both sides were loading! Link to comment Share on other sites More sharing options...

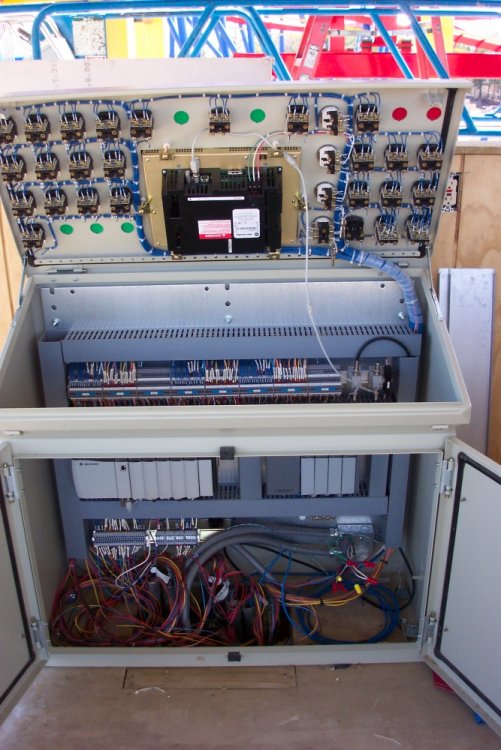

IOE Posted January 24, 2014 Share Posted January 24, 2014 So I was looking through some of my pictures and found this: SFGA Superman operator panel This is what the inside tends to look like. -Brian Link to comment Share on other sites More sharing options...
