News: Two New Maure Sohne Coasters

Recommended Posts

The Chinese park Knights Valley has already announced the GCIi woodie. But today Maure Sohne announced they are to supply the Chinese park with 2 new coasters.


First up is a standard Sky Loop. Although it will be built slightly differently to account for the regions seismic and typhoon conditions. This will open in late 2010


Technical data SkyLoop

Track length: approx. 150 m (490 ft)

Base area: 55 x 6,5 m (180 x 21 ft) (without station)

Max. height (center of tracks): 46.20 m (152 ft) (World´s highest inversion)

Overall height: 52 m (170 ft)

Cars: 2 x 6-seater X-Car, coupled to 1 tandem

Ride Time: approx. 60 s (without boarding and deboarding)

Capacity: approx. 550 pph

Max. speed: approx. 105 km/h (65mph)

G-forces: min = -1 g; max = 5 g

Inversions: 2


The second coaster to open in Feb 2010 is a LSM launched coaster that fires riders to 70kmph in 2 seconds. The track features a special loop, Immelmaan Turn, Camelback, Half Cuban Eight and Heartline roll.


Technical data Launch Coaster

Track length: 316 m (1036 ft)

Height: 15 m (50 ft)

Base area: 50 x 50 m (164 x 164 ft)

Speed vmax: 70 km/h (44 mph)

Capacity: 650 pph

Cars: 2 x 6-seater X-Car

Launch: amax: 10 m/s2 (1 g)

Connected load: 125 kVA

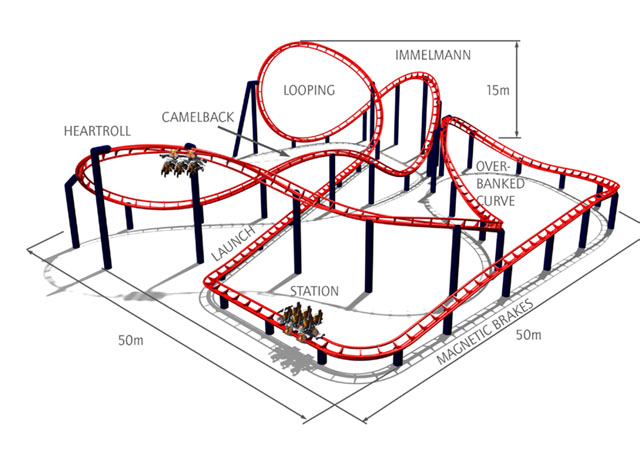

LSM Layout

Link to comment
Share on other sites

  • Replies 13
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

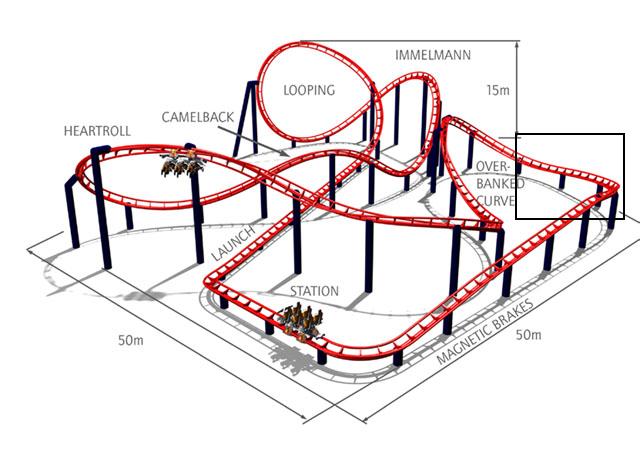

The layout does seem a little different after the last over banked curve. The Formule X model shows a small bump before turning into the break run, where this other model does not.


My Bump, My bump, my lovely lady bump... Check it out!


I don't seem to have a bump... :(

Link to comment
Share on other sites

RCDB does list this new coaster as a Maurer Sohne XL 1000 model, the same exact model as Formule X. Duane over at RCDB is usually pretty accurate, so I am not going to argue against it.


Sounds like Knights Valley should turn out to be a sweet little park. 3 coasters announced so far that all seem exciting. Plus, I have to imagine that these two Maurer Sohne coasters are a heck of lot cheaper to build compared to a typical B&M or Intamin steel coaster. Smaller footprint and certainly less actual steel involved.

Link to comment
Share on other sites

I think its great! I've been on Formule X several times and it really is a fun coaster!

I hope a lot of "small" parks will get on of these.. although it is better to have different lay-outs. I"m not always a fan of cloning the hell out of a coaster. It takes the uniqueness out of it

Link to comment
Share on other sites
